Research
Submental Intubation in Maxillofacial Trauma Patients: Our Early Experience and Lessons Learned
1Alok Bharti, 2*Preeti Tiwari, 2Nitesh Mishra
![](../../Users/Doc%20Manoj/Downloads/download.jpg)
1Department of Anaesthesiology, Trauma centre, Institute of Medical Sciences, Banaras Hindu University, Varanasi, U.P
2*Department of Oral and maxillofacial surgery, Faculty of Dental Sciences, Institute of Medical Sciences, Banaras Hindu University, Varanasi, U.P.
Submitted: Sunday, October 29, 2017
Accepted: Tuesday, January 23, 2018
Published: Tuesday, January 30, 2018
This is an Open Access article distributed under the terms of
the Creative Commons Attribution License
(http://creativecommons.org/licenses/by/4.0)which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
Abstract
Introduction
Trauma is the most common cause of mortality in productive age group across the world children. Complicated maxillofacial injury averting nasal intubation & requiring maxilla mandibular fixation pose a significant challenge with regards to airway access management. The aim of this retrospective analysis of our maxillofacial trauma patient is to present the results of submental intubation and to discuss the indications and result of this procedure.
Patients & Methods
A retrospective study, involving maxillofacial trauma patients of the single maxillofacial unit over a one year period from July 2015 to June 2016. The study included all patients with maxillofacial trauma requiring submental intubation during surgery for maxillofacial trauma. Data were collected from patient’s records for age, gender, mode of injury, type of maxillofacial trauma, associated trauma, intraoperative and postoperative complications regarding submental intubation.
Results
A total of 11 patients with maxillofacial trauma admitted during the study period. Submental intubation was successfully performed in 10 patients. Mean disconnection time in other patients was 1.2 ± 0.63 minutes. The mean procedure time was 9.6 ± 3.34 minutes. None of the patients had any motor or sensory disturbance or any complaints regarding salivary gland or duct damage. One patient with diabetes mellitus and uncontrolled blood sugar level developed a post-operative wound infection.
Conclusion
Submental intubation offers an adequate, easy and minimally invasive alternative for polytrauma patients though patients with co-morbidities should be screened to avoid complications.
Key Words
Submental intubation, maxillofacial trauma, wound infection, polytrauma
Introduction
Trauma is the most common cause of mortality in productive age group across the world children [1]. In Asia and other developing countries, the true incidence is not known and trauma constitutes a major but neglected public health problem. With upcoming trauma care facilities in different parts of India, now a better care of such patients is possible. Patients with complex maxillofacial trauma are an important group requiring a multidisciplinary team effort for their management. Complicated maxillofacial injury averting nasal intubation & requiring maxilla mandibular fixation pose a significant challenge with regards to airway access management. Classically the airway in these patients is secured by means of tracheostomy which is the gold standard. But tracheostomy is usually associated with significant morbidity. Further, the achievement of necessary occlusion in these patients is not possible with conventional oral intubation since the tube interferes with the occluding teeth. In 1986, Herna ndez Altemir described submental intubation as an alternative to the classic methods after which several authors have reported its utility with minimal complications [2]. We have been using submental intubation in at our trauma center for management of patients with complex maxillofacial injuries. The aim of this retrospective analysis of our maxillofacial trauma patient is to present the results of submental intubation and to discuss the indications and result of this procedure.
Patients & methods
This was a retrospective study involving maxillofacial trauma patients of the single maxillofacial unit over a one year period from July 2015 to June 2016. The study included all patients with maxillofacial trauma requiring submental intubation during surgery for maxillofacial trauma. Data were collected from patient’s records for age, gender, mode of injury, type of maxillofacial trauma, associated trauma, intraoperative and postoperative complications regarding submental intubation.
Technique of submental intubation
In all our cases standard oroendotracheal intubation is performed following which a 2 cm skin incision is given in right or left the paramedian submental region. The subcutaneous tissue (with platysma) and mylohyoid muscle is dissected using curved hemostatic forceps by keeping it in over the lingual cortex of mandible (with a curve towards ligula cortex).
A tunnel is created by opening the forceps and pushing it lingually on the floor of the mouth. The oroendotracheal tube is then disconnected from the ventilator. The hub of the tube is disconnected at its distal end and the tube is pulled through the incision by grasping it with the hemostatic forceps. Then the tube is re-connected to a ventilator and it’s fixation to skin with sutures is performed. At the end of surgery, the reversion is performed by pulling the tube into the oral cavity and the wound is closed in layers (Figure 1 and
2).
![](/manuscripts/YRW38SDERJ/1/imgfolder/Fig 1.jpg)

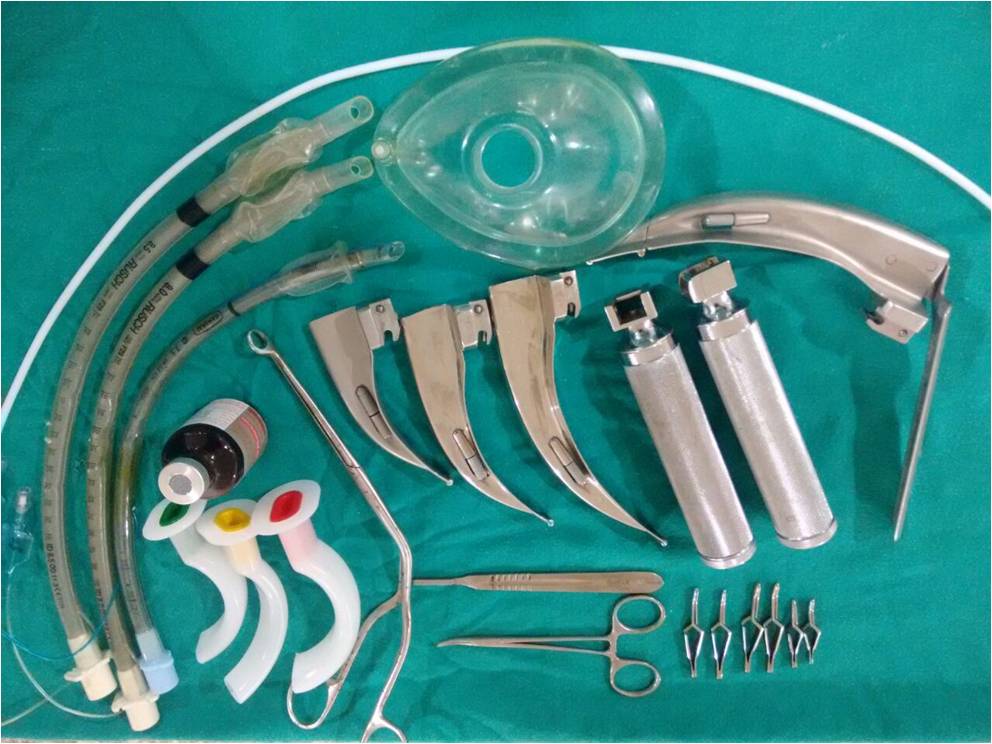

Figure 1: Instruments for submental intubation
![](/manuscripts/YRW38SDERJ/1/imgfolder/Fig 2.jpg)
Figure 2: Clinical photograph of submnetal intubation
Results
We scrutinized a total of 11 patients with maxillofacial trauma admitted during the study period (Table 1).Out of the assessed patients, 8 (72.7%) were male patients and 3 (27.2%) were female patients. Patient age ranged from 16-70 year with a mean age of 34.0 ±17.67 year. Road traffic accident was the most common mode of injury with most patients having complex injuries with a combination of multiple fractures of lower, mid and upper part of the face. Out of 11 patients, 7 (63.6%) had associated injuries. Most common associated injuries were head injuries and abdominal injuries. Submental intubation was successfully performed in 10 patients. One patient, a70 year male with bilateral wheeze and a long history of smoking developed rapid desaturation immediately after disconnection from ventilator even after adequate pre-oxygenation. His baseline saturation throughout the procedure varied between 85-90%. Mean disconnection time in other patients was 1.2 ± 0.63 minutes. The mean procedure time was 9.6 ± 3.34 minutes. None of the patients had any motor or sensory disturbance or any complaints regarding salivary gland or duct damage. One patient with diabetes mellitus and uncontrolled blood sugar level developed a post-operative wound infection. The wound was laid open and was allowed to heal by secondary intention. Later the patient developed pus discharge from surgical site which led to the removal of fixating plates. Minimal scarring was observed, without any complaints in all other patients.
Table 1: Details of patients included in the study
S. No
|
Age
|
Gender
|
Mode of trauma
|
Fracture
|
Associated injury
|
Complications
|
1.
|
45
|
Male
|
Head on collision from truck
|
LefortI, Zygomatic complexfracture, mandible
parasymphysis fracture
|
Head injury, abdominal trauma
|
None
|
2.
|
16
|
Male
|
Fall from bike
|
Maxillary dentoalveolar fracture, mandiblar parasymphysis and
subcondyle fracture
|
Head injury
|
None
|
3.
|
35
|
Male
|
Assault
|
Zygomatic complexfracture, nasal bone fracture, maxillary
dentoalveolar fracture
|
None
|
None
|
4.
|
32
|
Female
|
Fall from bike
|
Mandibular dentoalveolar fracture,mandibular symhysis fracture, nasal
bone fracture
|
Musculoskeletal injury
|
None
|
5.
|
29
|
Male
|
Car accident
|
Bimaxillary dentoalveolar fracture,mandibular dentoalveolar fracture,
Zygomatic complexfracture, nasal bone fracture
|
Musculoskeletal injury
|
None
|
6.
|
12
|
Male
|
Motor bike accident
|
Mandibuar parasymphysis fracture, Zygomatic complex
fracture
|
None
|
None
|
7.
|
22
|
Female
|
Car accident
|
Lefort II fracture,Mandibular dentoalveolar fracture
|
Head injury, abdominal trauma
|
None
|
8.
|
19
|
Male
|
Auto rickshaw accident
|
Bimaxillary dentoalveolar fracture mandibular angle fracture
|
None
|
None
|
9.
|
38
|
Female
|
Fall from bike
|
Lefort I fracture, mandibular parasymphysis fracture
|
Head injury
|
None
|
10.
|
56
|
Male
|
Car accident
|
Nasal bone fracture, lefort I, mandibular dentoalveolar fracture
|
Head injury
|
Wound infection with secondary healing
|
11.
|
70
|
Male
|
Fall from stairs
|
Lefort II fracture,bimaxillary dentoalveolar fracture
|
None
|
Failed submental intubation
|
Discussion
Since the introduction of submental intubation in 1986 several reports have been published highlighting its utility in different clinical scenarios. This technique paved for a secure airway with an unobstructed intraoral surgical field allowing maxillomandibular fixation with excellent ease. Further, this technique also avoided the drawbacks and complications of nasotracheal intubation and tracheostomy [3]. Excellent results have been reported in the literature with minimal or no motor or sensory deficit, normal healing of the mucosal floor, and preservation of the salivary ducts and saliva production [4-5].
As opposed to the classical description by Hernández Altemir, dissection was performed just over the periosteum and not below it. This avoided an excessive periosteal section of bone fragments that may already have compromised vascularity. This modification has been used by other authors previously [6-7]
Though submental intubation has these advantages, it is not free of adverse effects and complications. The most critical part is the passage of the endotracheal tube through the incision from the interior of mouth to the exterior. It may be difficult to pass the tube through the incision as in one of our cases which developed rapid desaturation. None of the other authors have reported this scenario but the difficult passage of tube can be overcome by Green and Moore’s modification to the original technique [8]. They used two endotracheal tubes in their technique. They first conventionally secured the airway with an oral tracheal tube. This was followed by passage of another endotracheal tube from exterior to the interior through the submental incision. The original oral tube is then withdrawn and reinforced tube substituted. The process may be reversed at the end of the procedure. This technique has another advantage that it precludes the removal of the connector which may not be easy in a lot of conditions or is not possible with some manufacturer’s design [9].However, this technique has been criticised as too aggressive for patients and traumatic to the pharyngeal and laryngeal mucosa of patients [10].
Other complications with submental intubations are oral floor abscesses and occurrence of hypertrophic scar formation [2]. But most reports agree that the complications are minimal and that patients are overall very satisfied with the lack of scarring. It has been hypothesized that high pressure due to acute angulation of the tube causes higher chances of complication [3]. In one of our patients, the risk factor was uncontrolled post-operative blood sugars level. In addition to the obvious benefits of submental endotracheal intubation in maxillofacial trauma procedures, elective use of this manoeuvre has been described as efficacious in procedures where an unobstructed oral or nasal cavity is beneficial to the surgeons, such as orthognathic surgery and even transfacial cranial base surgery [11]
Conclusion
In conclusion, the submental intubation offers an adequate, easy and minimally invasive alternative for polytrauma patients though patients with co-morbidities should be screened carefully before endeavoring the procedure to avoid unnecessary complications.
Authors’ Contribution
AB: Conception and design, acquisition of data.
PT: Conception and design, acquisition of data analysis and
interpretation of data
NM: Drafted the article and revised the contents
Conflict of Interests
The authors declare that there are no conflicts of Interests
Ethical Considerations
The study was approved by Institute Ethics Committee and written informed consent was taken from each participant.
Consent for Publication
Written informed consent was obtained from the study participants for publication of their case records and photographs. The copy is available with authors.
Funding
None Declared
Acknowledgements
None
References
[1] Guyer B, Freedman MA, Strobino DM,
Sondik EJ: Annual summary of vital statistics: trends in health of Americans
during the 20th Century. Pediatr 2000, 106(6):1307–1317. [PubMed]
[2] Altemir FH. The submental route for
endotracheal intubation: a new technique. J Maxillofac Surg 1986; 14: 64-5.
[PubMed]
[3] Amin M, Dill-Russell P, Manisali M,
Lee R, Sinton I. Facial fractures and submental tracheal intubation.
Anaesthesia. 2002;57(12):1195–9. [PubMed] [Free
Full text]
[4] Gordon NC, Tolstunov L. Submental
approach to oroendotracheal intubation in patient with midfacial fractures. Oral
Surg Oral Med Oral Pathol Oral Radiol Endod 1995;79: 269-72. [PubMed]
[5] Chandu A, Smith ACH, Gebert R.
Submental intubation: an alternative to short-term tracheostomy. Anaesth
Intensive Care 2000; 28: 193-5. [PubMed]
[6]Faraj J, AlKhalil M, Darwishb A, Faraj I, El-Zenati H, Altraifi Y,et al. Submandibular intubation; our experience in Qatar anda short review of literatura. Egypt J Ear Nose Throat Allied Sci.2013;14:119–21.
[Free Full text]
[7] Lazaridis N, Zouloumis L, Tilaveridis
I, Lazaridou M,Antoniades K, Dimitrakopoulos I. Retrotuberosityversus
submentosubmandibular and median submentalintubation: patients with
maxillofacial surgery. Oral Surg Oral Med Oral Pathol Oral Radiol. 2012;114
Suppl.5:S209–15. [PubMed]
[8] Green JD, Moore UJ. A modification of
sub-mental intubation. Br J Anaesth 1996; 77: 789-91. [PubMed] [Free
Full text]
[9] Meyer C, Valfrey J, Kjartansdottir T.
Indication for and technical refinements of submental intubation in oral and
max¬illofacial surgery. J Craniomaxillofac Surg. 2003;31(6):383–8. [PubMed]
[10] Lima SM, Asprino L, Moreira RW, de
Moraes M. A retrospective analysis of submental intubation in maxillofacial
trauma patients. J Oral Maxillofac Surg. 2011;69:2001–5. [PubMed]
[11] Jundt JS, Cattano D, Hagberg CA,
Wilson JW. Submentalintubation: a literature review. Int J Oral Maxillofac
Surg.2012;41:46–54. [PubMed]
